On Thursday 11th July 2019 in the late afternoon, I'll be presenting my
paper *At the Helm of the Burning Ship* at the
EVA London
conference. The proceedings should be free to access, I'll update this
post with links once they are published. I don't know if the talks will
be recorded. I'll put my slides online afterwards too.

At the Helm of the Burning ShipAbstract: The Burning Ship fractal is a non-analytic variation of the Mandelbrot set, formed by taking absolute values in the recurrence. Iterating its Jacobian can identify the period of attracting orbits; Newton’s root-finding method locates their mini-ships. Size estimates tell how deep to zoom to find the mini-ship or its embedded quasi-Julia set. Pre-periodic Misiurewicz points with repelling dynamics are located by Newton’s method. Stretched regions are automatically unskewed by the Jacobian, which is also good for colouring images using distance estimation. Perturbation techniques cheapen deep zooming. The mathematics can be generalised to other fractal formulas. Some artistic zooming techniques and domain colouring methods are also described.

Keywords: Burning Ship. Dynamical systems. Fractal art. Numerical algorithms. Perturbation theory.

If you're in town with cash to splash on registration fees, I think you have to book before Sunday. I'll also be attending on the Tuesday, there looks like a good session on robot drawing.

**EDIT** I made a micro-site for the paper and slides.

Start with the iteration formula for the Burning Ship escape time fractal:

\[ X := X^2 - Y^2 + A \quad\quad Y := \left|2 X Y\right| + B \]

Perturb this iteration, replacing \(X\) by \(X+x\) (etc) where \(x\) is a small deviation:

\[ x := (2 X + x) x - (2 Y + y) y + a \quad\quad y := 2 \operatorname{diffabs}(X Y, X y + x Y + x y) + b \]

Here \(\operatorname{diffabs}(c,d)\) is laser blaster's formula for evaluating \(|c + d| - |c|\) without catastrophic cancellation; see my post about perturbation algebra for more details.

Now replace \(x\) and \(y\) by bivariate power series in \(a\) and \(b\):

\[ x = \sum_{i,j} s_{i,j} a^i b^j \quad\quad y = \sum_{i,j} t_{i,j} a^i b^j \]

To implement this practically (without lazy evaluation) I pick an order \(o\) and limit the sum to \(i + j \le o\). Substituting these series into the perturbation iterations, and collecting terms, gives iteration formulae for the series coefficients \(s_{i,j}\) and \(t_{i,j}\):

\[ s_{i,j} := 2 X s_{i,j} - 2 Y t_{i,j} + \sum_{k=0,l=0}^{k=i,l=j} \left( s_{k,l} s_{i-k,j-l} - t_{k,l} t_{i-k,j-l} \right) + \mathbb{1}_{i=1,j=0} \]

The formula for \(t\) requires knowing which branch of the \(\operatorname{diffabs}(X Y, 0)\) was taken, which turns out has a nice reduction to \(\operatorname{sgn}(XY)\):

\[ t_{i,j} := 2 \operatorname{sgn}(X Y) \left( X t_{i,j} + s_{i,j} Y + \sum_{k=0,l=0}^{k=i,l=j} \left( s_{k,l} t_{i-k,j-l} \right) \right) + \mathbb{1}_{i=0,j=1} \]

\(\mathbb{1}_F\) is the indicator function, \(1\) when \(F\) is true, \(0\) otherwise. For distance estimation, the series of the derivatives are just the derivatives of the series, which can be computed very easily.

The series is only valid in a region that doesn't intersect an axis, at which point the next iteration will fold the region in a way that a series can't represent. Moreover, the series loses accuracy the further from the reference point, so there needs to be a way to check that the series is ok to use. One approach is to iterate points on the boundary of the region using perturbation, and compare the relative error against the same points calculated with the series. Only if all these probe points are accurate, is it safe to try the next iteration.

This usually means that the series will skip at most \(P\) iterations near a central miniship reference of period \(P\). But one can do better, by subdividing the region into parts that are folded in different ways. The parts that are folded the same way as the reference can continue with series approximation, with probe points at the boundary of each part, with the remainder switching to regular perturbation initialized by the series.

It may even be possible to use knighty's techniques like Taylor shift, which is a way to rebase a series to a new reference point (for example, one in the "other side" of the fold) to split the region into two or more separate parts each with their own series approximation. The Horner shift algorithm is not too complicated, and I think it can be extended to bivariate series by shifting along each variable in succession:

// Horner shift code from FLINT2 for (i = n - 2; i >= 0; i--) for (j = i; j < n - 1; j++) poly[j] += poly[j + 1] * c

Untested Haskell idea for bivariate shift:

shift :: Num v => v -> Map Int v -> Map Int v shift = undefined -- left as an exercise shift2 :: Num v => v -> v -> Map (Int, Int) v -> Map (Int, Int) v shift2 x y = twiddle . pull . fmap (shift x) . push . twiddle . pull . fmap (shift y) . push push :: (Ord a, Ord b) => Map (a, b) v -> Map a (Map b v) push m = M.fromListWith M.union [ (i, M.singleton j e) | ((i,j), e) <- M.assocs m ] pull :: (Ord a, Ord b) => Map a (Map b v) -> Map (a, b) v pull m = M.fromList [((i,j),e) | (i, mj) <- M.assocs m, (j, e) <- M.assocs mj ] twiddle :: (Ord a, Ord b) => Map (a, b) v -> Map (b, a) v twiddle = M.mapKeys (\(i,j) -> (j,i))

Exciting developments! I hope to release a new version of Kalles Fraktaler 2 + containing at least some of these algorithms soon...

]]>The Burning Ship fractal is interesting because it has mini-ships among filaments. However, some of these filaments and mini-ships are highly stretched or skewed non-conformally, which makes them look ugly. Some fractal software (Kalles Fraktaler, Ultrafractal, ...) has the ability to apply a non-uniform scaling to the view, which unstretches the filaments and makes (for example) the period-doubling features on the way to the mini-ship appear more circular. However, to my knowledge, all these software require manual adjustment of the unskewing transformation, for example dragging control points in a graphical user interface.

The size estimate for the Burning Ship mini-sets is based on the size estimate for the Mandelbrot set. The Burning Ship iterations are not a well behaved complex function, so Jacobian matrices over real variables are necessary. Generic pseudo-code for the size estimate of an arbitrary function:

d := degree of smallest non-linear power in f a, b := coordinates of a mini-set with period p x, y := critical point of f (usually 0, 0) L := I B := I for j := 1 to p - 1 x, y := f(x, y) L := Jf(x, y) B := B + L^{-1} size := 1 / sqrt(abs(det(L^(d/(d-1)) B)))

In particular for the power 2 Burning Ship this resolves to:

d := 2 x := 0 y := 0 L(lxx, lxy; lyx, lyy) := (1, 0; 0, 1) B(bxx, bxy; byx, byy) := (1, 0; 0, 1) for j := 1 to p - 1 x, y := (x^2 - y^2 + a, abs(2 x y) + b) L := ( 2 x lxx - 2 y lyx , 2 x lxy - 2 y lyy , 2 sgn(x) sgn(y) (x lyx + lxx y) , 2 sgn(x) sgn(y) (x lyy + lxy y) ) detL := lxx * lyy - lxy * lyx B := ( bxx + lyy / detL , bxy - lyx / detL , byx - lxy / detL , byy + lxx / detL ) detL := lxx * lyy - lxy * lyx detB := bxx * byy - bxy * byx size := 1 / sqrt(abs(detL^2 * detB))

Note the renormalization of the \(c=a+bi\) plane by:

\[L^\frac{d}{d - 1} B\]

The size estimate takes out the uniform scaling factor from this 2x2 matrix, but it's also possible to use it to extract rotation and non-uniform scaling (stretching, skew) parameters. A problem comes when trying to raise the matrix \(L\) to a non-integer power when \(d > 2\), so I fudged it and hoped that the non-conformal contribution from \(L\) is non-existent, and just used \(B\). To cancel out the uniform scaling from \(B\), I divide by the square root of its determinant, and I take its inverse to use as a coordinate transformation for the \(c=a+bi\) plane:

\[T = \left(\frac{B}{\sqrt{\det B}}\right)^{-1}\]

I tested it briefly and it seems to work for Burning Ship power 2 and 3, and also Mandelbar/Tricorn power 2. There is a problem however: to get this automatic skew matrix, one needs to zoom deep enough so that Newton's method can find a mini-set, but doing that is tricky in hard-skewed areas. So I still need to write GUI code for manual skew, to make that pre-navigation easier.

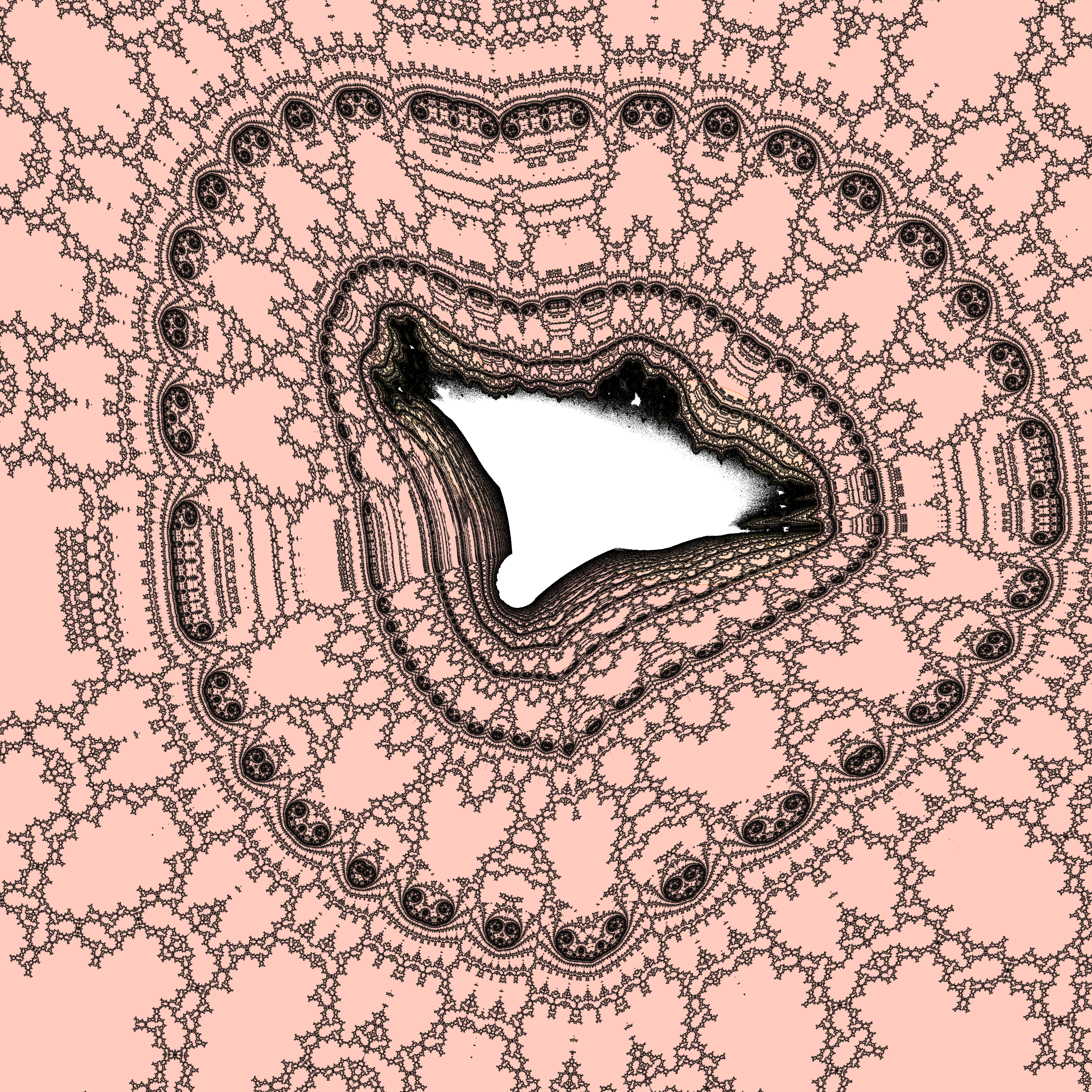

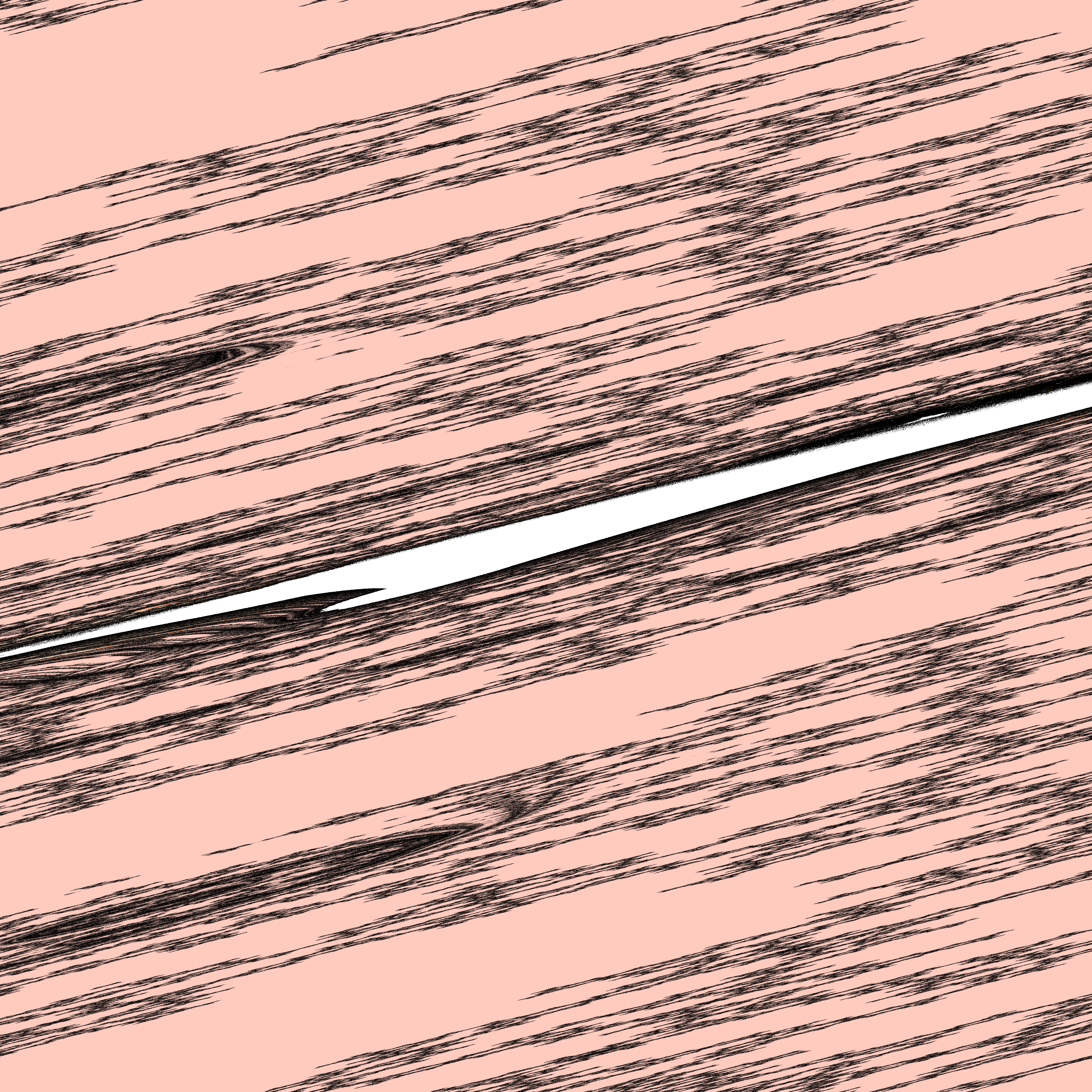

Here's just one image pair, power 2 Burning Ship, the first is with an identity transformation, the second with automatically calculated unskewing transformation:

One last thing: it should be possible to separate skew from rotation by applying polar decomposition.

]]>The essence of perturbation is to find the difference between the high precision values of a function at two nearby points, while using only the low precision value of the difference between the points. In this post I'll write the high precision points in CAPITALS and the low precision deltas in lowercase. There are two auxiliary operations needed to define the perturbation \(P\), \(B\) replaces all variables by their high precision version, and \(W\) replaces all variables by the sum of the high precision version and the low precision delta. Then \(P = W - B\):

\[\begin{aligned} B(f) &= f(X) &\text{ (emBiggen)}\\ W(f) &= f(X + x) &\text{ (Widen)}\\ P(f) &= W(f) - B(f) \\ &= f(X + x) - f(X) &\text{ (Perturb)} \end{aligned}\]

For example, perturbation of \(f(z, c) = z^2 + c\), ie, \(P(f)\), works out like this:

\[\begin{aligned} & P(f) \\ \to & f(Z + z, C + c) - f(z, c) \\ \to & (Z + z)^2 + (C + c) - (Z^2 + C) \\ \to & Z^2 + 2 Z z + z^2 + C + c - Z^2 - C \\ \to & 2 Z z + z^2 + c \end{aligned}\]

where in the final result the additions of \(Z\) and \(z\) have mostly cancelled out and all the terms are "small".

For polynomials, regular algebraic manipulation can lead to successful outcomes, but for other functions it seems some "tricks" are needed. For example, \(|x|\) (over \(\mathbb{R}\)) can be perturbed with a "diffabs" function proceeding via case analysis:

// evaluate |X + x| - |X| without catastrophic cancellation function diffabs(X, x) { if (X >= 0) { if (X + x >= 0) { return x; } else { return -(2 * X + x); } } else { if (X + x > 0) { return 2 * X + x; } else { return -x; } } }

This formulation was developed by laser blaster at fractalforums.com.

For transcendental functions, other tricks are needed. Here for example is a derivation of \(P(\sin)\):

\[\begin{aligned} & P(\sin) \\ \to & \sin(X + x) - \sin(X) \\ \to & \sin(X) \cos(x) + \cos(X) \sin(x) - \sin(X) \\ \to & \sin(X) (\cos(x) - 1) + \cos(X) \sin(x) \\ \to & \sin(X) \left(-2\sin^2\left(\frac{x}{2}\right)\right) + \cos(X) \sin(x) \\ \to & \sin(X) \left(-2\sin^2\left(\frac{x}{2}\right)\right) + \cos(X) \left(2 \cos\left(\frac{x}{2}\right) \sin\left(\frac{x}{2}\right)\right) \\ \to & 2 \sin\left(\frac{x}{2}\right) \left(-\sin(X) \sin\left(\frac{x}{2}\right) + \cos(X) \cos\left(\frac{x}{2}\right)\right) \\ \to & 2 \sin\left(\frac{x}{2}\right) \cos\left(X + \frac{x}{2}\right) \end{aligned}\]

Knowing when to apply the sum- and double-angle-formulae, is a bit of a mystery, especially if the end goal is not known beforehand. This makes implementing a symbolic algebra program that can perform these derivations quite a challenge.

In lieu of a complete symbolic algebra program that does it all on demand, here are a few formulae that I calculated, some by hand, some using Wolfram Alpha:

\[\begin{aligned} P(a) &= 0 \\ P(a f) &= a P(f) \\ P(f + g) &= P(f) + P(g) \\ P(f g) &= P(f) W(g) + B(f) P(g) \\ P(f^{n+1}) &= P(f) \sum_{k=0}^n W(f^k) B(f)^{n-k} \\ P\left(\frac{1}{f}\right) &= -\frac{P(f)}{B(f)W(f)} \\ P\left(\frac{f}{g}\right) &= \frac{P(f) B(g) - B(f) P(g)}{B(g) W(g)} \\ P(|f|) &= \operatorname{diffabs}(B(f), P(f)) \\ P(\exp) &= \exp(X) \operatorname{expm1}(x) \\ P(\exp \circ f) &= 2 \sinh\left(\frac{P(f)}{2}\right)\exp\left(\frac{W(f)+B(f)}{2}\right) \\ P(\log) &= \operatorname{log1p}\left(\frac{x}{X}\right) \\ P(\sin \circ f) &= \phantom{-}2 \sin\left(\frac{P(f)}{2}\right)\cos\left(\frac{W(f)+B(f)}{2}\right) \\ P(\cos \circ f) &= -2 \sin\left(\frac{P(f)}{2}\right)\sin\left(\frac{W(f)+B(f)}{2}\right) \\ P(\tan \circ f) &= \frac{\sin(P(f))}{\cos(B(f))\cos(W(f))} \\ P(\sinh \circ f) &= 2 \sinh\left(\frac{P(f)}{2}\right)\cosh\left(\frac{W(f)+B(f)}{2}\right) \\ P(\cosh \circ f) &= 2 \sinh\left(\frac{P(f)}{2}\right)\sinh\left(\frac{W(f)+B(f)}{2}\right) \\ P(\tanh \circ f) &= \frac{\sinh(P(f))}{\cosh(B(f))\cosh(W(f))} \\ P(\sec \circ f) &= \frac{2\sin(\frac{P(f)}{2})\sin(\frac{W(f)+B(f)}{2})}{\cos(B(f))\cos(W(f))} \\ P(\csc \circ f) &= \frac{-2\sin(\frac{P(f)}{2})\cos(\frac{W(f)+B(f)}{2})}{\sin(B(f))\sin(W(f))} \\ P(\cot \circ f) &= \frac{\cos(P(f))}{\sin(B(f))\sin(W(f))} \\ \end{aligned}\]

I hope to find time to add these to et soon.

**EDIT** there is a simpler and more general way to derive \(P(\sin)\)
and so on, using \(\sin(a) \pm \sin(b)\) formulae...

**EDIT 2019-12-23** added \(P(\exp \circ f)\) via \(\exp = \sinh + \cosh\)

**EDIT 2020-05-28** added \(P(f^n)\) via induction

**EDIT 2021-09-29** added \(\sec, \csc, \cot\) thanks to FractalAlex

**EDIT 2021-10-05** added \(\frac{f}{g}\) by combining the product and reciprocal rules

In my work-in-progress et project for escape-time fractals, I currently represent the viewing transform (from pixel grid to complex plane coordinates) by a translation (high precision coordinates of the center of the view), a scaling (high range scale factor), and a 2×2 matrix that accounts for non-uniform scaling and rotation (4 low precision numbers, defaulting to the identity [1,0;0,1]) - this matrix should have determinant 1 as any global scaling belongs in the scale factor.

However, editing raw matrix values is not very user friendly, so I plan to
add a friendly user interface based on marking points in the GUI before moving
them around with the mouse (eventually: multi-touch support for tablets etc).
An intermediate step might be to represent the matrix in a more human-relevant
way, decomposing it into rotations and non-uniform scaling (a shear is a
non-uniform scaling conjugated by a rotation, no need to handle it separately).
It so happens that this is a well-known linear algebra problem, called
**polar decomposition**. The matrix M is decomposed into a
rotation V and a stretch P, such that M = V P, and further the stretch P can be
decomposed into a rotation U and a diagonal matrix D, such that
P = U D U^{-1} (though this last decomposition is not unique).

A good description of the problem and examples in higher dimensions is:

Matrix Animation and Polar Decomposition

Ken Shoemake and Tom Duff

AbstractGeneral 3×3 linear or 4×4 homogenous matrices can be formed by composing primitive matrices for translation, rotation, scale, shear, and perspective. Current 3-D computer graphics systems manipulate and interpolate parametric forms of these primitives to generate scenes and motion. For this and other reasons, decomposing a composite matrix in a meaningful way has been a long-standing challenge. This paper presents a theory and method for doing so, proposing that the central issue is rotation extraction, and that the best way to do that is Polar Decomposition. This method also is useful for renormalizing a rotation matrix containing excessive error.

For the 2D case there is a simple explicit formula given in:

Explicit polar decomposition and a near-characteristic polynomial: The 2×2 case

Frank Uhlig

AbstractExplicit algebraic formulas for the polar decomposition of a nonsingular real 2×2 matrix A are given, as well as a classification of all integer 2×2 matrices that admit a rational polar decomposition. These formulas lead to a functional identity which is satisfied by all nonsingular real 2×2 matrices A as well as by exactly one type of exceptional matrix A_{n}, for each n > 2.

Translated into Octave code (presumably Matlab compatible), assuming that M is real with det(M) > 0:

M = [1,-3;2,2] scale = sqrt(det(M)) A = M / scale; B = A + inv(A'); b = sqrt(abs(det(B))); V = B / b; P = (A' * A + eye(2)) / b; [U,D] = eig(P); stretch = D(1); stretchAngle = atan2(U(2,1), U(1,1)); if (stretch < 1) stretch = 1 / stretch stretchAngle = stretchAngle + pi / 2; endif stretchA = mod(stretchAngle, pi) rotation = atan2(V(2,1), V(1,1)) R = [ cos(rotation), -sin(rotation); sin(rotation), cos(rotation) ]; S = [ stretch, 0; 0, 1/stretch ]; T = [ cos(stretchA), -sin(stretchA); sin(stretchA), cos(stretchA) ]; N = scale * R * T * S * T'; error = norm(M - N)

Example output:

M = 1 -3 2 2 scale = 2.8284 stretch = 1.2808 stretchA = 1.4483 rotation = 1.0304 error = 1.0721e-15

Note that eigenvalues and eigenvectors can be found explicitly in 2D, see for example Eigenvalues and eigenvectors of 2x2 matrices.

Final things to note: currently et uses only the view scale factor to choose which number type to use for calculations. This might lead to pixelation artifacts from insufficient precision in highly stretched images near number type thresholds, so the stretch factor should be taken into account too when determining the minimal pixel spacing. Handling reflection (det < 0) is left for future investigation.

]]>
