# Interior Distance

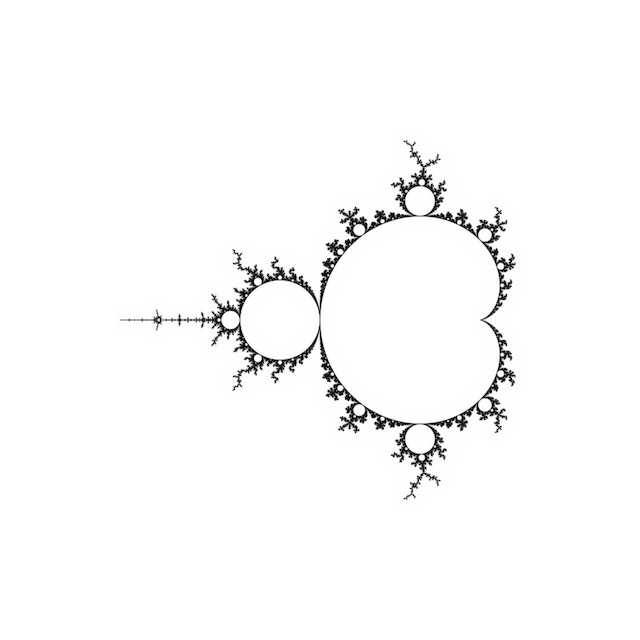

Interior distance rendering

The formula for interior distance estimation is:

\[d = \frac{1-\left|\frac{\partial}{\partial{z}}\right|^2} {\left|\frac{\partial}{\partial{c}}\frac{\partial}{\partial{z}} + \frac{\left(\frac{\partial}{\partial{z}}\frac{\partial}{\partial{z}}\right) \left(\frac{\partial}{\partial{c}}\right)} {1-\frac{\partial}{\partial{z}}}\right|}\]

where the derivatives are evaluated at \(z_0\) satisfying \(F^p(z_0, c) = z_0\).

Following Practical interior distance rendering“ (2014), simple code for distance estimate rendering now looks something as follows; more involved algorithms that provide a significant speed-up can be found on that page.

# 1 C99 Code

#include <complex.h>
#include <math.h>

double cnorm(double _Complex z)
{
  return creal(z) * creal(z) + cimag(z) * cimag(z);
}

double m_interior_distance
    (double _Complex z0, double _Complex c, int p)
{
    double _Complex z = z0;
    double _Complex dz = 1;
    double _Complex dzdz = 0;
    double _Complex dc = 0;
    double _Complex dcdz = 0;
    for (int m = 0; m < p; ++m)
    {
        dcdz = 2 * (z * dcdz + dz * dc);
        dc = 2 * z * dc + 1;
        dzdz = 2 * (dz * dz + z * dzdz);
        dz = 2 * z * dz;
        z = z * z + c;
    }
    return (1 - cnorm(dz))
        / cabs(dcdz + dzdz * dc / (1 - dz));
}

double m_distance(int N, double R, double _Complex c)
{
    double _Complex dc = 0;
    double _Complex z = 0;
    double m = 1.0 / 0.0;
    int p = 0;
    for (int n = 1; n <= N; ++n)
    {
        dc = 2 * z * dc + 1;
        z = z * z + c;
        if (cabs(z) > R)
            return 2 * cabs(z) * log(cabs(z)) / cabs(dc);
        if (cabs(z) < m)
        {
            m = cabs(z);
            p = n;
            double _Complex z0 = m_attractor(z, c, p);
            double _Complex w = z0;
            double _Complex dw = 1;
            for (int k = 0; k < p; ++k)
            {
                dw = 2 * w * dw;
                w = w * w + c;
            }
            if (cabs(dw) <= 1)
                return m_interior_distance(z0, c, p);
        }
    }
    return 0;
}
