# Trustworthy Mandelbrot

Mathematically proven images:


100% exterior


100% interior


not yet determined (zone of unknown)

# 1 References

Images of Julia sets that you can trust. Luiz Henrique de Figueiredo, Diego Nehab, Jorge Stolfi, João Batista S. de Oliveira. 2013. http://webdoc.sub.gwdg.de/ebook/serien/e/IMPA_A/721.pdf

Rigorous bounds for polynomial Julia sets. Luiz Henrique de Figueiredo, Diego Nehab, Jorge Stolfi, João Batista S. de Oliveira. Journal of Computational Dynamics, 2016, 3(2): 113-137. doi: 10.3934/jcd.2016006

# 2 Algorithm

The Julia set algorithm works by interval arithmetic and cell mapping graph traversals.

The Mandelbrot set algorithm works by classifying Julia sets: if the critical point 0+0i is exterior/interior to the filled Julia set for the interval of the pixel, then the interval is exterior/interior to the Mandelbrot set.

# 2.1 Optimisations

  • bit-packed quad tree saves memory (to be investigated if it saves/costs time vs byte-packed quad tree)
  • storing edges as pairs of node ids in two sorted arrays (for binary search) saves memory compared to pointers and linked lists
  • when constructing the graph, use one unique node for all exterior targets
  • speculatively allocate a large graph and fill it in one pass, giving up on overflow, instead of calculaing size first in another pass
  • uint24 for node ids in edge arrays is too slow, uint32 is less frugal space-wise but much faster
  • glibc qsort() may allocate up to 1/4 of physical memory, which is highly undesirable when there are many threads
  • naively-implemented binary most-significant-digit radix sort with uint32 keys is very competitive time-wise with glibc qsort()
  • each thread allocates all its memory up-front, and manages it internally (memory allocation/deallocation mostly follows a stack pattern, the remainder can be solved by moving the top item(s) to another stack at the other end of memory)
  • store Julia sets (compressed) on OOM, to avoid having to recalculate when the concurrency is reduced and more memory is available per thread

# 3 Images

level 0

level 1

level 2

level 3

level 4

level 5

level 6

level 7

level 8

level 9

level 10

level 11

# 4 Data

# 4.1 Dump

0 / 1 / 2 / 3 / 4 / 5 / 6 / 7 / 8 / 9 / 10 / 11

This represents about 5 days of computation (wall-clock time; mostly with 16 threads active) on an AMD 2700X CPU with 32GB RAM.

# 4.2 Format

File format:

  • ASCII header contains
    • magic data format identifying string
    • complex interval that the image represents (currently always [-2.75,1.25]+[-2,2]i)
    • number of branch nodes in the quad tree, from which the number of size bits for branch nodes is determined (see TREE_size_size_for_tree_size() in tree.h, it would be better for archival if the actually used size size were stored in the file directly)
    • indication that binary data follows
    • header terminated by \n\f (new line followed by form feed)
  • uncompressed bit-packed binary quad tree follows
    • sequence of 8-bit bytes, bits in little endian order in each byte

    • last byte may have unused trailing bits with arbitrary values

    • 2 bits per node

      • 00 red (zone of unknown)
      • 01 black (100% interior)
      • 10 white (100% exterior)
      • 11 branch (size in units of 2 bits in even number of following bits)
    • following a branch node and its size, the 4 quadrants follow in order (bottom left, bottom right, top left, top right)

    • last two nodes of tree are unused (set to black) when the interval is symmetric about the real axis (redundancy elimination)

# 5 Area

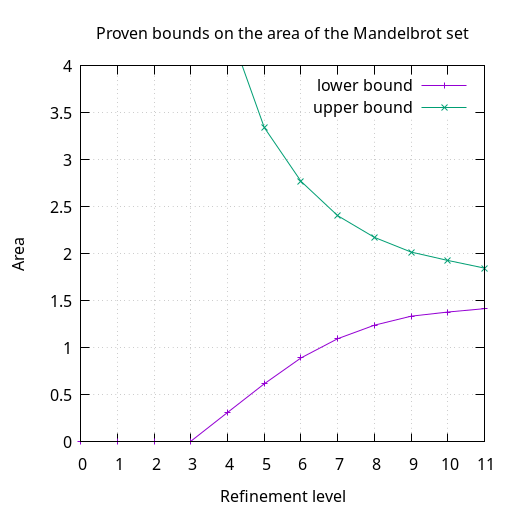

graph of proven bounds on the area of the Mandelbrot set

Download the data for the plot.

Level 11’s proven bounds on the area of the Mandelbrot set:

\[1.416492462158203125 \le \text{area}(\mathcal{M}) \le 1.84781646728515625\]

# 6 Source

code.mathr.co.uk/fractal-bits (subdirectory mandelbrot-trustworthy)

git clone https://code.mathr.co.uk/fractal-bits.git
cd fractal-bits/mandelbrot-trustworthy

Source code dependencies:

include graph
