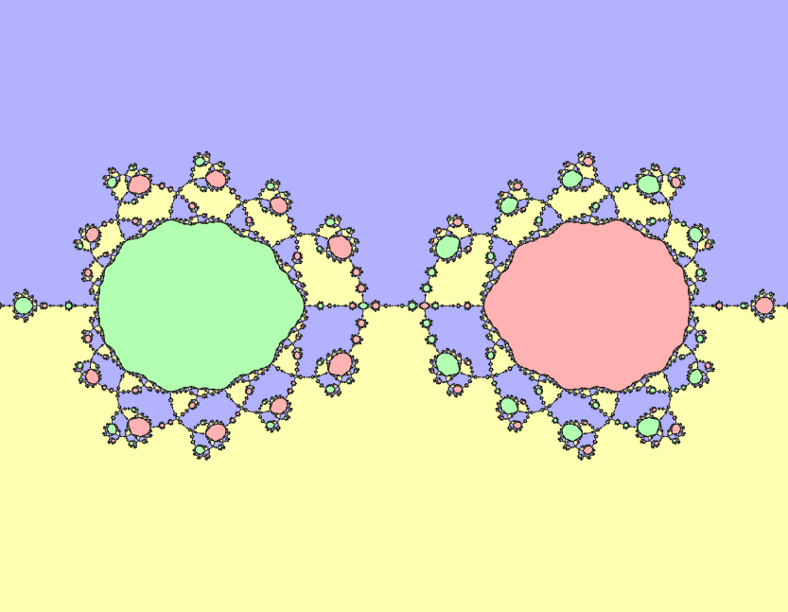

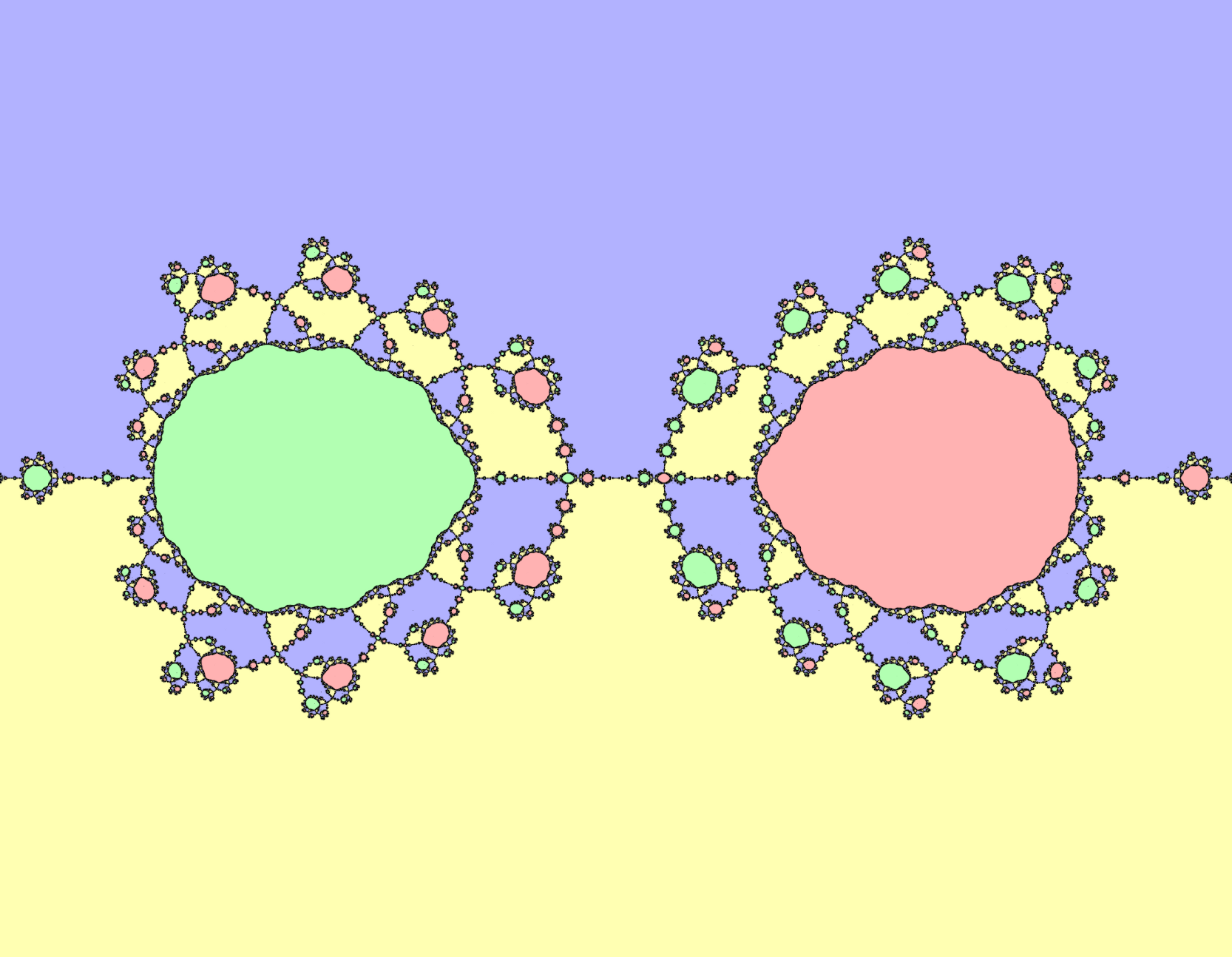

Distance estimated Newton fractal for a rational function with zeros at {1, i, -1, -i} and poles at {-2, 2}. I already blogged about this calendar image for March: Distance estimation for Newton fractals. The only other thing to mention is dual numbers for differentiation, which I used to save effort computing derivative equations in an OpenGL GLSL fragment shader re-implementation for Fragmentarium:

#include "Progressive2D.frag"

const int nzeros = 4;
const vec2[4] zeros = vec2[4]
  ( vec2( 1.0,  0.0)
  , vec2( 0.0,  1.0)
  , vec2(-1.0,  0.0)
  , vec2( 0.0, -1.0)
  );
const int npoles = 2;
const vec2[2] poles = vec2[2]
  ( vec2( 2.0,  0.0)
  , vec2(-2.0,  0.0)
  );
const vec3[4] colours = vec3[4]
  ( vec3(1.0, 0.7, 0.7)
  , vec3(0.7, 0.7, 1.0)
  , vec3(0.7, 1.0, 0.7)
  , vec3(1.0, 1.0, 0.7)
  );
const float weight = 0.25; // change this according to render size
const float huge = 1.0e6;
const float epsSquared = 1.0e-6;
const int newtonSteps = 64;

float cmag2(vec2 z) { return dot(z,z); }
vec2 csqr(vec2 z) { return vec2(z.x*z.x - z.y*z.y, 2.0*z.x*z.y); }
vec2 crecip(vec2 z) { float d = cmag2(z); return z / vec2(d, -d); }
vec2 cmul(vec2 a, vec2 b) { return vec2(a.x*b.x - a.y*b.y, a.x*b.y + a.y*b.x); }

// dual numbers
vec4 constant(vec2 z) { return vec4(z, 0.0, 0.0); }
vec4 variable(vec2 z) { return vec4(z, length(vec4(dFdx(z), dFdy(z))), 0.0); }
vec4 crecip(vec4 z) { vec2 w = crecip(z.xy); return vec4(w, -cmul(z.zw, csqr(w))); }

vec4 newtonStep(vec4 z) {
  vec4 s = vec4(0.0);
  for (int i = 0; i < nzeros; ++i) {
    s += crecip(z - constant(zeros[i]));
  }
  for (int i = 0; i < npoles; ++i) {
    s -= crecip(z - constant(poles[i]));
  }
  return z - crecip(s);
}

vec3 newton(vec4 z00) {
  vec4 z0 = z00;
  bool done = false;
  int count = -1;
  vec3 rgb = vec3(0.0);
  float d0 = huge;
  float d1 = huge;
  for (int n = 0; n < newtonSteps; ++n) {
    d1 = d0;
    z0 = newtonStep(z0);
    d0 = huge;
    for (int i = 0; i < nzeros; ++i) {
      float d = cmag2(z0.xy - zeros[i]);
      if (d < d0) { d0 = d; rgb = colours[i]; }
    }
    if (d0 < epsSquared) {
      done = true;
      break;
    }
  }
  float de = 0.0;
  if (done) {
    de = 0.5 * abs(log(d0)) * sqrt(d0) / length(z0.zw);
  }
  return tanh(clamp(weight * de, 0.0, 8.0)) * rgb;
}

vec3 color(vec2 z) { return newton(variable(z * 1.5)); }

You can download the above "Two Beetles Meet" Fragmentarium reimplementation.
