Shades of Gray

Shades of Gray

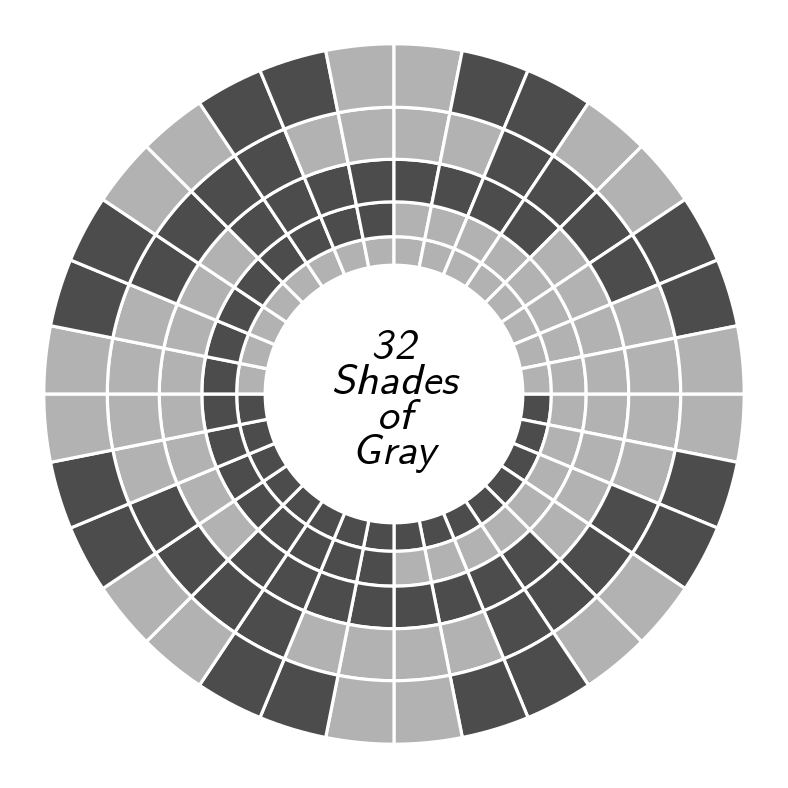

Last year I drew some things, and today I recreated one of them using Haskell with the Diagrams library. It features a circular Gray code with five bits, giving 32 possible combinations. A Gray code has the property that neighbouring combinations change only in one position, which is useful for detecting errors in rotary encoders.

Here is the source code:

{-# LANGUAGE FlexibleContexts #-}
{-# LANGUAGE TypeFamilies #-}
import Diagrams.Prelude hiding (size)
import Diagrams.Backend.SVG.CmdLine (B, defaultMain)

main :: IO ()
main = defaultMain diagram

diagram :: Diagram B
diagram
  = bg white
  . frame 0.125
  . centerXY
  . mconcat
  $ [ ring 6 2 1
    , ring 5 4 2
    , ring 4 8 4
    , ring 3 16 8
    , ring 2 16 0
    , txt
    ]

ring :: Double -> Int -> Int -> Diagram B
ring inr count offset
  = mconcat
  . zipWith (cell inr) [0..31]
  . drop offset
  . cycle
  $ (  replicate count False
    ++ replicate count True
    )

cell :: Double -> Double -> Bool -> Diagram B
cell inr angle flag
  = rotate (angle / 32 @@ turn)
  . fc (if flag then dark else light)
  . lc white
  . translate (r2 (i, 0))
  . strokeT
  . closeTrail
  $ mconcat
    [ p2 (i, 0) ~~ p2 (o, 0)
    , arc' o h t
    , rotate t $ p2 (o, 0) ~~ p2 (i, 0)
    , arc' i (rotate t h) t'
    ]
  where
    t = 1 / 32 @@ turn
    t' = -1 / 32 @@ turn
    i = size inr
    o = size (inr + 1)
    h = direction (r2 (1, 0))

light, dark :: Colour Double
light = sRGB 0.7 0.7 0.7
dark  = sRGB 0.3 0.3 0.3

size :: Double -> Double
size r = exp ((r - 7) / 5)

txt :: Diagram B
txt
  = scale 0.125
  . centerXY
  . vcat
  $ centerXY
  . atop (translateY 0.4 $ strutY 0.8)
  . font "LMSans10"
  . italic
  . fontSizeL 1
  . text
  <$> words "32 Shades of Gray"

I had some frustrations until I realized that fontSizeL was what I needed to make the text change size when rendering at different sizes.
